Firmware Update¶

The firmware for each TRION module is bundled with the TRION hardware driver. If a newer firmware version is available, DEWETRON Explorer will automatically detect it and display a notification next to the affected module.

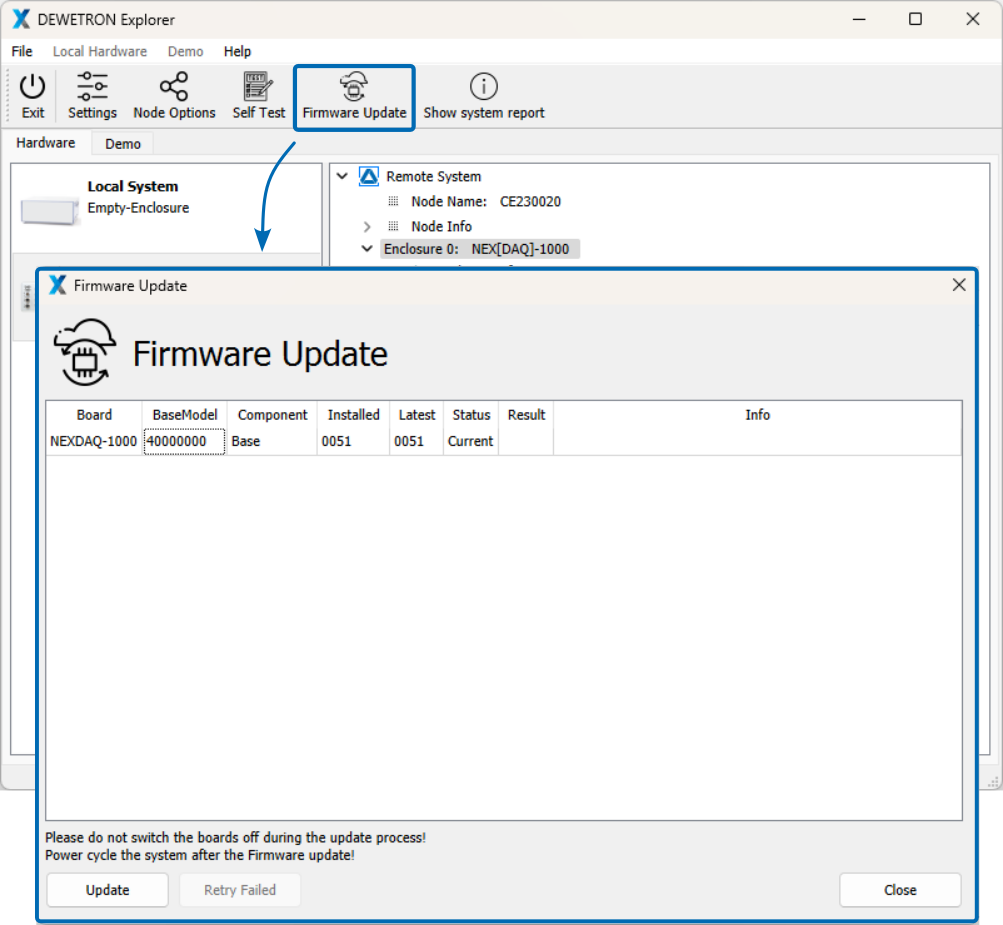

To update the firmware, select the relevant measurement system and click on “Enclosure” to update all hardware, or choose a single slot. Then, click the “Firmware Update” button in the menu bar or use the right-click menu. This action opens the Firmware Update menu (see Fig. 16 ), which shows the currently installed firmware version, the latest available version, and further information. To begin the update process, click the “Update” button. If an update fails, you can attempt to resolve the issue by clicking the “Retry Failed” button. After completing the update, shut down the system and disconnect the power plug for approximately 5 seconds. Restarting the system will finalize the firmware update process.
