Offline Support

If a data file including the speed and angle signal of a rotating machine and the signal for which an order analysis shall be determined already exists, the order analysis can also be determined during the post processing in the following manner.

• Open the data file

• Go to the channel setup and create an order analysis module

• Adjust settings and add extracted orders if necessary (see Fig. 7).

• Exit menu, calculation starts automatically

• Place additional instruments like a Recorder or an X/Y-Plot (see Fig. 15).

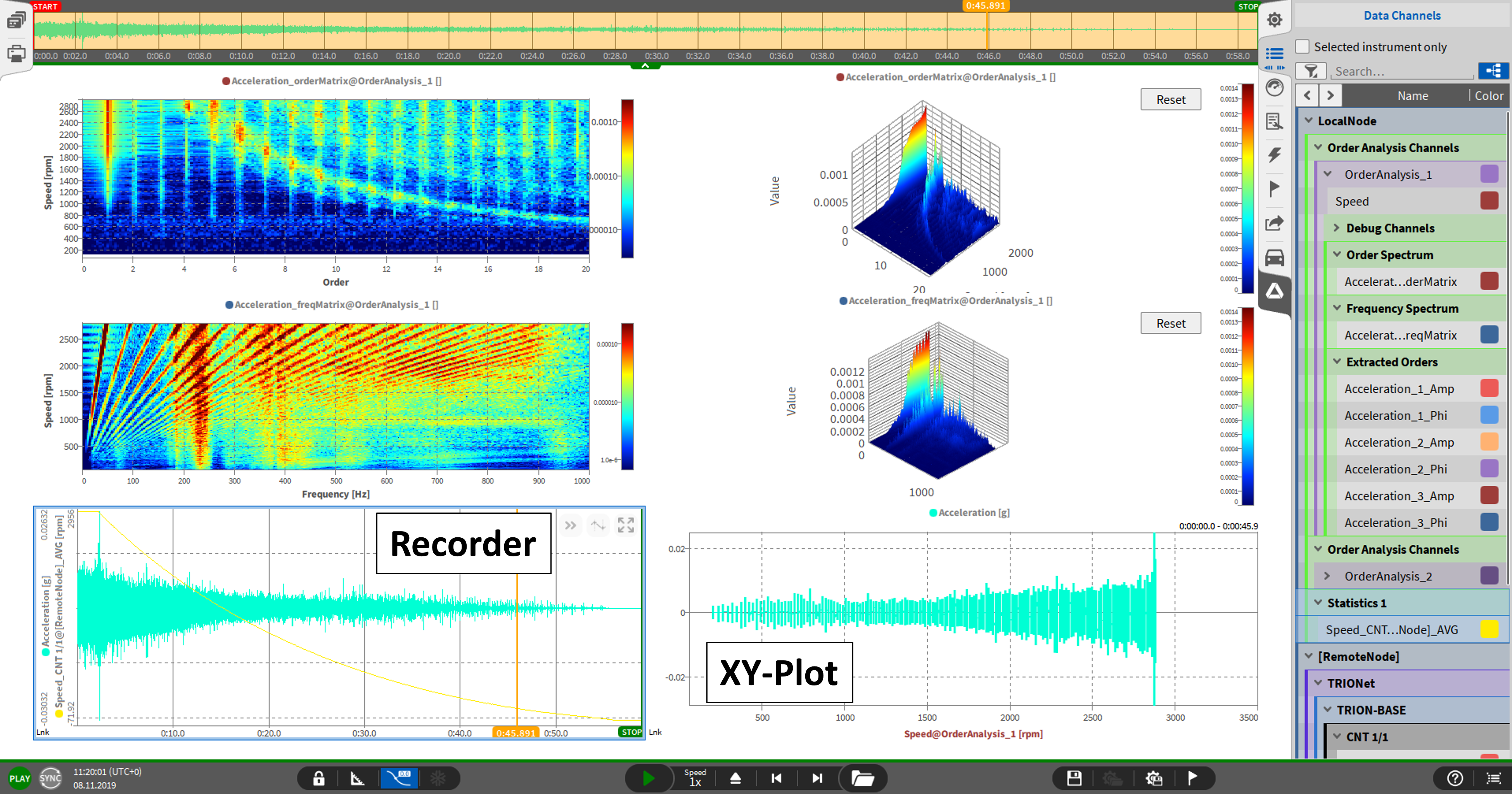

Fig. 15 Offline order analysis
