Examples

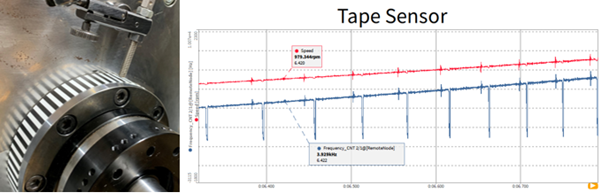

Tape Sensor example in OXYGEN

Fig. 8 Tape Sensor example in OXYGEN

In the figure above, the blue signal is the frequency channel of the counter group with negative spikes at the gap. The red signal is the speed channel of the Tape Sensor Plugin which detects and corrects the gap to calculate the speed of the machine.

Resolver:

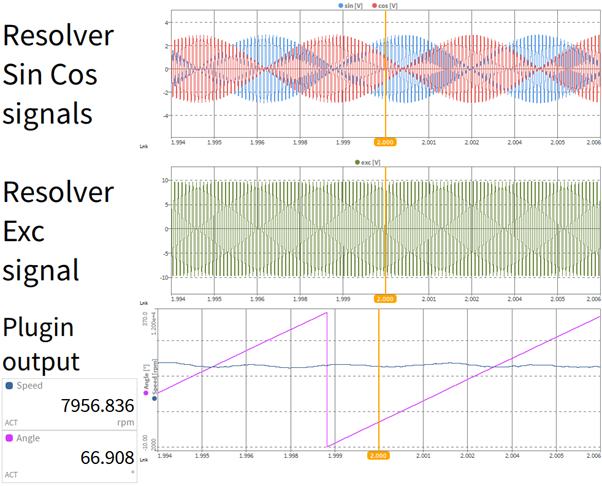

Resolver example in OXYGEN

Fig. 9 Resolver example in OXYGEN

The resolver example shows the modulated analog signals and the plugin output in OXYGEN.
